20021121-00010C4LF
Manufacturer
Amphenol Communications Solutions
Description

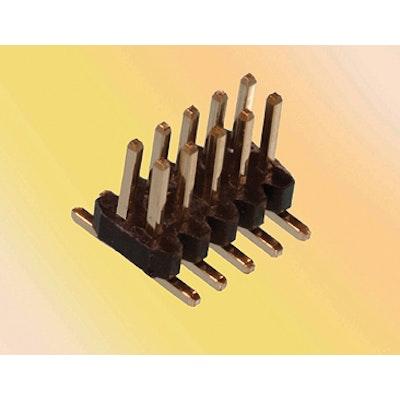

Conn Unshrouded Header HDR 10 POS 1.27mm Solder ST Top Entry SMD Minitek127 T/R
Datasheet
DownloadProduct Attributes
Type
Color
Connector Type
Contact Material
Contact Mating Length
Contact Plating
Contact Resistance
Current Rating
Depth
Gender
Height
Housing Color
Housing Material
Insulation Resistance
Length
Mating Post Length
Max Operating Temperature
Max Voltage Rating (AC)
Min Operating Temperature
Mount
Number of Contacts
Number of Pins
Number of Positions
Number of Rows
Pitch
Radiation Hardening
REACH SVHC
RoHS
Row Spacing
Stack Height
Termination
Voltage Rating
Description
Black
Header, Male Pin
Gold, Nickel
3.048 mm
Gold
30 mΩ
1 A
3.4 mm
Male
4.8 mm
Black
Thermoplastic
100 MΩ
6.35 mm
3.05 mm
125 °C
125 V
-55 °C
Surface Mount
10
10
10
2
1.27 mm
No
No
Compliant
1.27 mm
3 mm
Solder
125 V
₹110.72
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹110.72
₹110.72
10
₹93.88
₹938.79
25
₹93.90
₹2347.43
50
₹93.86
₹4693.03
100
₹79.81
₹7980.63
500
₹79.80
₹39901.32
1000
₹70.31
₹70312.26
