5499374-8
Manufacturer
TE Connectivity / AMP
Description

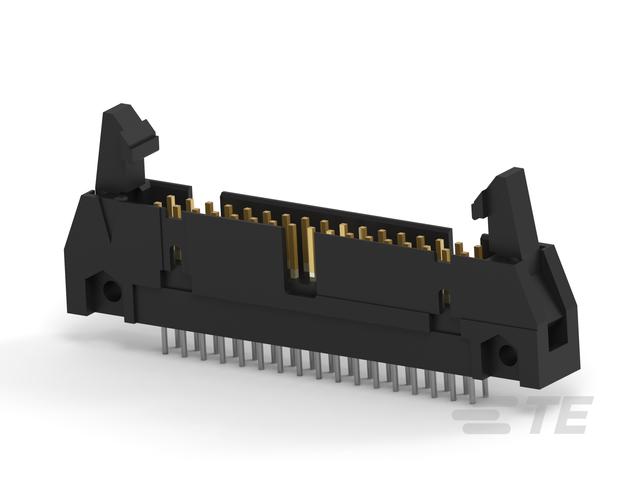

Conn Ejector Header HDR 34 POS 2.54mm Solder ST Top Entry Thru-Hole Box
Datasheet
DownloadProduct Attributes
Type
Circuit Application
Color
Connector System
Connector Type
Contact Current Rating
Contact Gender
Contact Material
Contact Mating Length
Contact Plating
Contact Shape
Current Rating
Depth
ELV
Fastening Type
Flammability Rating
Gender
Height
Housing Color
Insulation Resistance
Lead Free
Lead Length
Lead Pitch
Length
Lifecycle Status
Mating Connector Lock
Max Operating Temperature
Max Voltage Rating (AC)
Min Operating Temperature
Mount
Number of Contacts
Number of Positions
Number of Rows
Operating Supply Voltage
Orientation
PCB Mounting Orientation
PCB Mount Retention
PCB Thickness
Pitch
Plating Thickness
Radiation Hardening
RoHS
Row Spacing
Shrouded End Dimension
Termination
Description
Signal
Black
Wire-to-Board
Header, Pin, Plug
1 A
Male
Brass
6.096 mm
Gold, Tin
Square
1 A
8.53 mm
Compliant
Latch
UL94 V-0
Male
13.94 mm
Black
5 GΩ
Lead Free
3.94 mm
2.54 mm
62.48 mm
Production (Last Updated: 1 week ago)
With
105 °C
250 V
-65 °C
Through Hole
34
34
2
250 V
Vertical
Vertical
Without
3.18 mm
2.54 mm
2.54 µm
No
Compliant
2.54 mm
3.81 mm
Through Hole
₹1151.06
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹1151.06
₹1151.06
10
₹1151.06
₹11510.60
25
₹1183.97
₹29599.33
50
₹926.44
₹46321.88
100
₹792.17
₹79217.04
