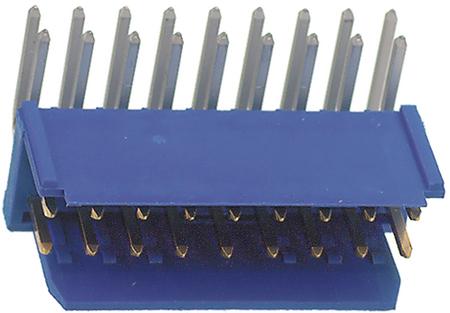

76383-308LF
Manufacturer
Amphenol Communications Solutions
Description
Dubox2.54mm, Board to Board Connector, Shrouded Header, Double Row, Right Angle.
Datasheet
DownloadProduct Attributes
Type
Color
Connector Type
Contact Material
Contact Mating Length
Contact Plating
Current Rating
Depth
Fastening Type
Gender
Housing Color
Housing Material
Insulation Resistance
Lead Free
Lead Length
Length
Mating Post Length
Max Operating Temperature
Max Voltage Rating (AC)
Min Operating Temperature
Mount
Number of Contacts
Number of Pins
Number of Positions
Number of Rows
Orientation
Pitch
Radiation Hardening
RoHS
Row Spacing
Termination
Voltage Rating
Width
Description
Blue
Male Pin
Bronze, Gold, Nickel
5.0038 mm
Gold
3 A
13.28 mm
Friction
Male
Blue
Polyester
100 GΩ
Lead Free
3.35 mm
20.14 mm
5 mm
125 °C
1 kV
-40 °C
Through Hole
16
16
16
2
Right Angle
2.54 mm
No
Compliant
2.54 mm
Solder
1 kV
9.34 mm
₹246.13
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹246.13
₹246.13
10
₹190.53
₹1905.33
25
₹190.53
₹4763.34
50
₹185.54
₹9277.18
100
₹185.53
₹18552.54
500
₹162.16
₹81079.91
