875075561005
Manufacturer
Würth Elektronik Midcom
Description

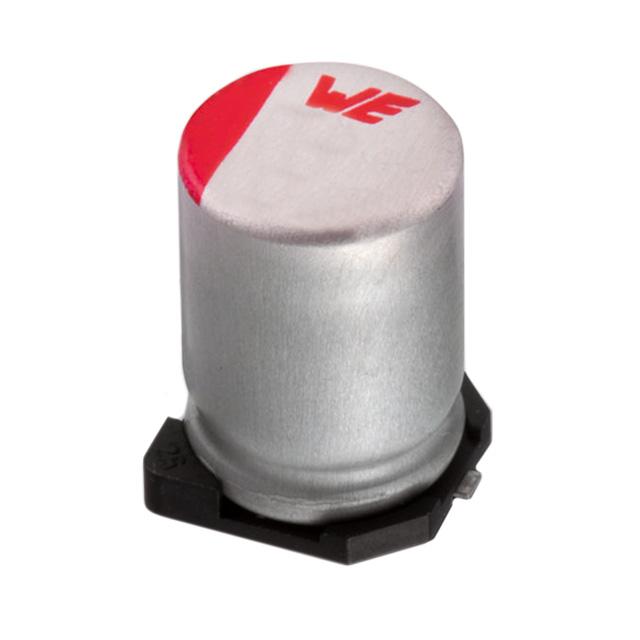

WURTH ELEKTRONIK - 875075561005 - Polymer Aluminium Electrolytic Capacitor, 100 F, 25 V, Radial Can - SMD, 0.015 ohm
Datasheet
DownloadProduct Attributes
Type
Type
Capacitance
Tolerance
Voltage - Rated
ESR (Equivalent Series Resistance)
Lifetime @ Temp.
Max Operating Temperature
Applications
Ripple Current (AC)
Ripple Current @ High Frequency
Size / Dimension
Height - Seated (Max)
Surface Mount Land Size
Mounting Type
Case/Package
Description
Polymer
100 µF
±20%
25 V
15mOhm
2000 Hrs @ 105°C
-55°C ~ 105°C
General Purpose
240 mA @ 120 Hz
4.8 A @ 100 kHz
0.394" Dia (10.00mm)
0.488" (12.40mm)
0.406" L x 0.406" W (10.30mm x 10.30mm)
Surface Mount
Radial, Can - SMD
₹194.90
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹194.90
₹194.90
10
₹185.44
₹1854.38
25
₹185.44
₹4635.95
50
₹166.38
₹8319.18
100
₹144.88
₹14488.11
500
₹128.77
₹64386.72
Product Attributes
Type
Type
Capacitance
Tolerance
Voltage - Rated
ESR (Equivalent Series Resistance)
Lifetime @ Temp.
Max Operating Temperature
Applications
Ripple Current (AC)
Ripple Current @ High Frequency
Size / Dimension
Height - Seated (Max)
Surface Mount Land Size
Mounting Type
Case/Package
Description
Polymer
100 µF
±20%
25 V
15mOhm
2000 Hrs @ 105°C
-55°C ~ 105°C
General Purpose
240 mA @ 120 Hz
4.8 A @ 100 kHz
0.394" Dia (10.00mm)
0.488" (12.40mm)
0.406" L x 0.406" W (10.30mm x 10.30mm)
Surface Mount
Radial, Can - SMD
