B560C-13-F
Manufacturer
Diodes Incorporated
Description

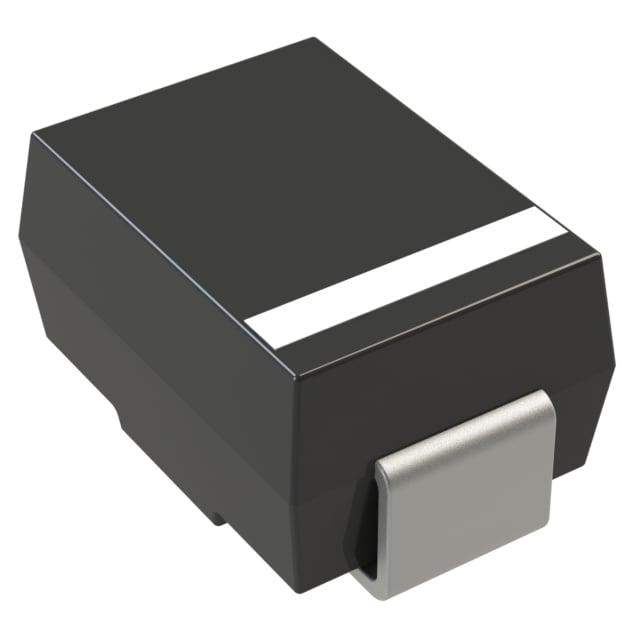

DIODES INC. - B560C-13-F - Schottky Rectifier, 60 V, 5 A, Single, DO-214AB (SMC), 2 Pins, 700 mV
Datasheet
DownloadProduct Attributes
Type
Technology
Voltage
Average Rectified Current
Forward Voltage
Speed
Current - Reverse Leakage @ Vr
Capacitance @ Vr, F
Mounting Type
Case/Package
Packaging
Max Junction Temperature (Tj)
Description
Schottky
60 V
5A
700 mV @ 5 A
Fast Recovery =< 500ns, > 200mA (Io)
500 µA @ 60 V
300pF @ 4V, 1MHz
Surface Mount
DO-214AB, SMC
SMC
-55°C ~ 150°C
₹103.39
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹103.39
₹103.39
10
₹53.28
₹532.80
25
₹53.28
₹1331.99
50
₹53.28
₹2663.98
100
₹41.76
₹4176.06
500
₹31.87
₹15937.47
1000
₹24.97
₹24972.29
Product Attributes
Type
Technology
Voltage
Average Rectified Current
Forward Voltage
Speed
Current - Reverse Leakage @ Vr
Capacitance @ Vr, F
Mounting Type
Case/Package
Packaging
Max Junction Temperature (Tj)
Description
Schottky
60 V
5A
700 mV @ 5 A
Fast Recovery =< 500ns, > 200mA (Io)
500 µA @ 60 V
300pF @ 4V, 1MHz
Surface Mount
DO-214AB, SMC
SMC
-55°C ~ 150°C
