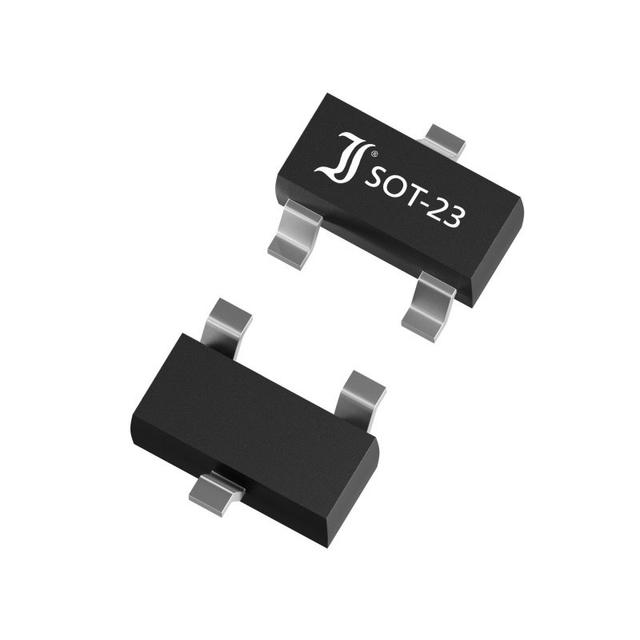

BAT54S
Manufacturer
Diotec
Description
MULTICOMP PRO - BAT54S - Small Signal Schottky Diode, Dual Series, 30 V, 200 mA, 1 V, 600 mA, 150 C
Datasheet
DownloadProduct Attributes
Type
Diode Configuration
Technology
Voltage
Current - Average Rectified (Io) (per Diode)
Forward Voltage
Speed
Reverse Recovery Time
Current - Reverse Leakage @ Vr
Max Junction Temperature (Tj)
Mounting Type
Case/Package
Packaging
Description
1 Pair Series Connection
Schottky
30 V
200mA
1 V @ 100 mA
Small Signal =< 200mA (Io), Any Speed
5 ns
2 µA @ 25 V
-55°C ~ 150°C
Surface Mount
TO-236-3, SC-59, SOT-23-3
SOT-23-3 (TO-236)
₹11.27
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹11.03
₹110.32
25
₹11.03
₹275.81
50
₹9.14
₹456.89
100
₹6.94
₹693.57
500
₹5.88
₹2941.45
1000
₹5.36
₹5363.73
Product Attributes
Type
Diode Configuration
Technology
Voltage
Current - Average Rectified (Io) (per Diode)
Forward Voltage
Speed
Reverse Recovery Time
Current - Reverse Leakage @ Vr
Max Junction Temperature (Tj)
Mounting Type
Case/Package
Packaging
Description
1 Pair Series Connection
Schottky
30 V
200mA
1 V @ 100 mA
Small Signal =< 200mA (Io), Any Speed
5 ns
2 µA @ 25 V
-55°C ~ 150°C
Surface Mount
TO-236-3, SC-59, SOT-23-3
SOT-23-3 (TO-236)
