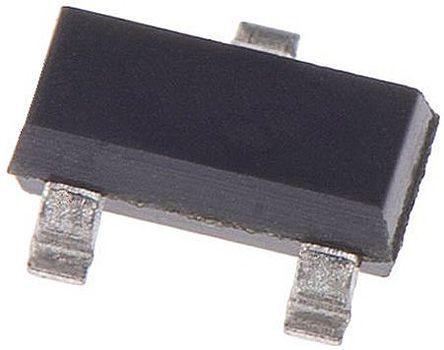

BAT54S-7-F
Manufacturer
Diodes Inc.
Description
BAT54S Series 30 V 600 mA Surface Mount Schottky Barrier Diode - SOT-23
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Capacitance
Case/Package
Color
Contact Material
Contact Plating
Current Rating
Diameter
Forward Current
Forward Voltage
Height
Lead Free
Length
Max Forward Surge Current (Ifsm)
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Min Operating Temperature
Mount
Number of Pins
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Power Dissipation
Power Rating
Radiation Hardening
REACH SVHC
Reverse Recovery Time
Reverse Voltage
RoHS
Schedule B
Termination
Voltage Rating (DC)
Weight
Width
Description
200 mA
10 pF
SOT-23
Orange
Bronze
Tin
200 mA
2.54 mm
200 mA
800 mV
1.1 mm
Lead Free
7.62 mm
600 mA
150 °C
150 °C
200 mW
30 V
30 V
-65 °C
Through Hole
3
Bulk
600 mA
2 µA
200 mW
200 mW
No
No SVHC
5 ns
30 V
Compliant
8541100070, 8541100070|8541100070|8541100070|8541100070|8541100070
SMD/SMT
30 V
7.994566 mg
1.3 mm
₹12.20
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹10.41
₹104.13
25
₹8.05
₹201.30
50
₹8.05
₹402.60
100
₹6.90
₹689.68
500
₹5.12
₹2561.26
1000
₹3.33
₹3334.98
