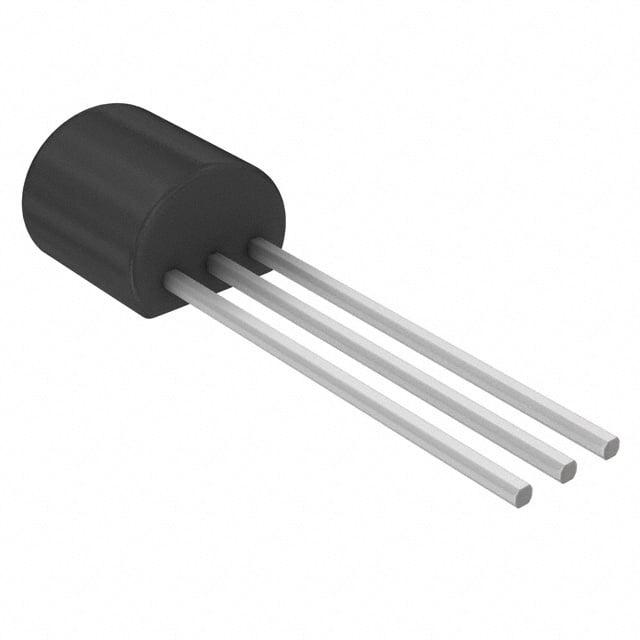

BC547B
Manufacturer
onsemi
Description
ONSEMI - BC547B - Bipolar (BJT) Single Transistor, NPN, 45 V, 100 mA, 1.5 W, TO-92, Through Hole
Datasheet
DownloadProduct Attributes
Type
Transistor Type
Current - Collector (Ic) (Max)
Collector Emitter Breakdown Voltage
Vce Saturation (Max) @ Ib, Ic
Continuous Collector Current
DC Current Gain (hFE) (Min) @ Ic, Vce
Output Power
Transition Frequency
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
NPN
100 mA
45 V
600mV @ 5mA, 100mA
15nA (ICBO)
200 @ 2mA, 5V
500 mW
300MHz
150°C (TJ)
Through Hole
TO-226-3, TO-92-3 (TO-226AA)
TO-92-3
₹14.41
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹10.12
₹101.19
25
₹9.20
₹229.97
50
₹9.20
₹459.94
100
₹5.77
₹577.15
500
₹4.11
₹2052.75
1000
₹2.81
₹2808.40
Product Attributes
Type
Transistor Type
Current - Collector (Ic) (Max)
Collector Emitter Breakdown Voltage
Vce Saturation (Max) @ Ib, Ic
Continuous Collector Current
DC Current Gain (hFE) (Min) @ Ic, Vce
Output Power
Transition Frequency
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
NPN
100 mA
45 V
600mV @ 5mA, 100mA
15nA (ICBO)
200 @ 2mA, 5V
500 mW
300MHz
150°C (TJ)
Through Hole
TO-226-3, TO-92-3 (TO-226AA)
TO-92-3
