BC547BBU
Manufacturer
onsemi
Description

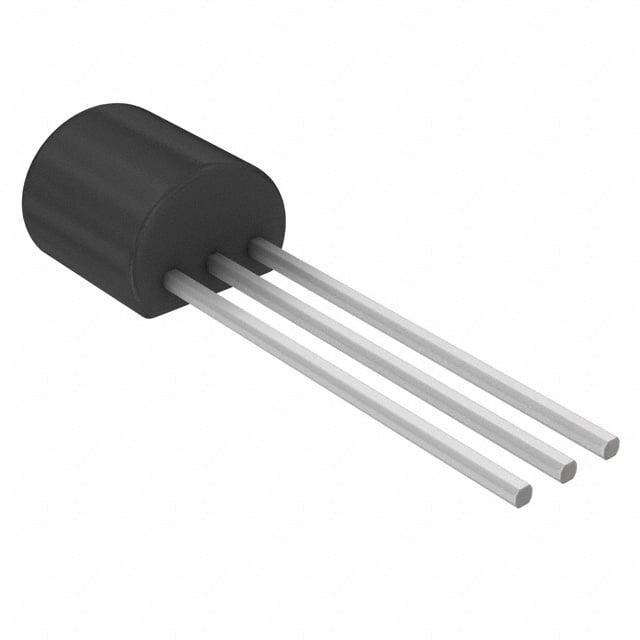

ONSEMI - BC547BBU - Bipolar (BJT) Single Transistor, NPN, 45 V, 100 mA, 500 mW, TO-92, Through Hole
Datasheet
DownloadProduct Attributes
Type
Transistor Type
Current - Collector (Ic) (Max)
Collector Emitter Breakdown Voltage
Vce Saturation (Max) @ Ib, Ic
Continuous Collector Current
DC Current Gain (hFE) (Min) @ Ic, Vce
Output Power
Transition Frequency
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
NPN
100 mA
45 V
600mV @ 5mA, 100mA
15nA (ICBO)
200 @ 2mA, 5V
500 mW
300MHz
150°C (TJ)
Through Hole
TO-226-3, TO-92-3 (TO-226AA)
TO-92-3
₹24.01
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹14.42
₹144.23
25
₹14.42
₹360.57
50
₹14.42
₹721.14
100
₹10.39
₹1038.87
500
₹6.35
₹3177.30
1000
₹5.05
₹5045.60
Product Attributes
Type
Transistor Type
Current - Collector (Ic) (Max)
Collector Emitter Breakdown Voltage
Vce Saturation (Max) @ Ib, Ic
Continuous Collector Current
DC Current Gain (hFE) (Min) @ Ic, Vce
Output Power
Transition Frequency
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
NPN
100 mA
45 V
600mV @ 5mA, 100mA
15nA (ICBO)
200 @ 2mA, 5V
500 mW
300MHz
150°C (TJ)
Through Hole
TO-226-3, TO-92-3 (TO-226AA)
TO-92-3
