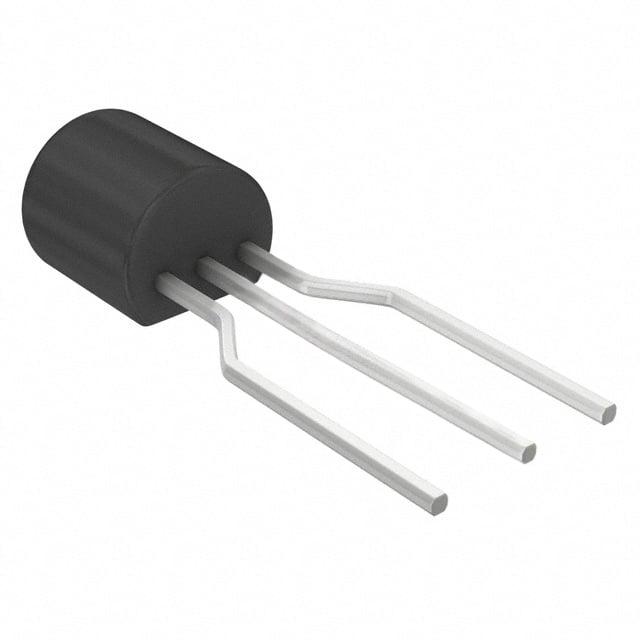

BC547BTF
Manufacturer
onsemi
Description
ONSEMI - BC547BTF - Bipolar (BJT) Single Transistor, NPN, 45 V, 100 mA, 500 mW, TO-92, Through Hole
Datasheet
DownloadProduct Attributes
Type
Transistor Type
Current - Collector (Ic) (Max)
Collector Emitter Breakdown Voltage
Vce Saturation (Max) @ Ib, Ic
Continuous Collector Current
DC Current Gain (hFE) (Min) @ Ic, Vce
Output Power
Transition Frequency
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
NPN
100 mA
45 V
600mV @ 5mA, 100mA
15nA (ICBO)
200 @ 2mA, 5V
500 mW
300MHz
150°C (TJ)
Through Hole
TO-226-3, TO-92-3 (TO-226AA) Formed Leads
TO-92-3
₹28.83
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹17.58
₹175.76
25
₹17.58
₹439.41
50
₹17.58
₹878.81
100
₹10.92
₹1092.42
500
₹8.10
₹4051.95
1000
₹4.50
₹4498.20
Product Attributes
Type
Transistor Type
Current - Collector (Ic) (Max)
Collector Emitter Breakdown Voltage
Vce Saturation (Max) @ Ib, Ic
Continuous Collector Current
DC Current Gain (hFE) (Min) @ Ic, Vce
Output Power
Transition Frequency
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
NPN
100 mA
45 V
600mV @ 5mA, 100mA
15nA (ICBO)
200 @ 2mA, 5V
500 mW
300MHz
150°C (TJ)
Through Hole
TO-226-3, TO-92-3 (TO-226AA) Formed Leads
TO-92-3
