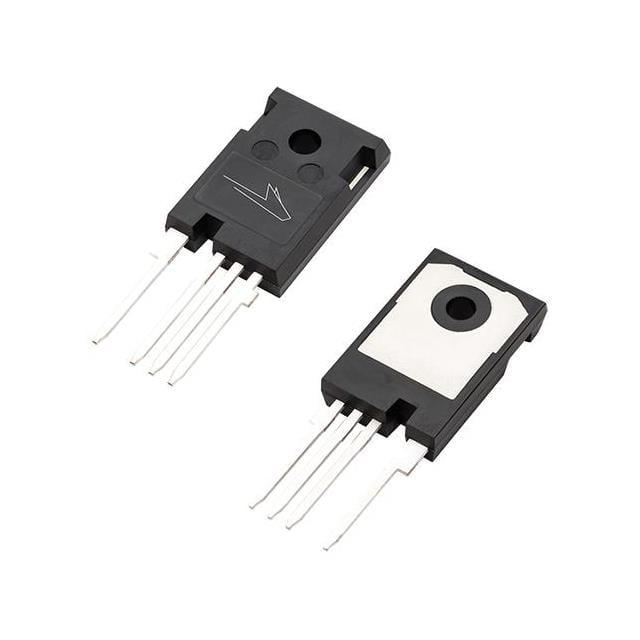

C3M0016120K
Manufacturer
Wolfspeed
Description
WOLFSPEED - C3M0016120K - Silicon Carbide MOSFET, Single, N Channel, 115 A, 1.2 kV, 0.0223 ohm, TO-247
Datasheet
DownloadProduct Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
SiCFET (Silicon Carbide)
1200 V
115A (Tc)
15V
22.3mOhm @ 75A, 15V
3.6V @ 23mA
211 nC @ 15 V
+15V, -4V
6085 pF @ 1000 V
556W (Tc)
-40°C ~ 175°C (TJ)
Through Hole
TO-247-4L
TO-247-4
₹3174.14
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹3174.14
₹3174.14
10
₹2274.71
₹22747.06
25
₹2274.71
₹56867.66
50
₹2233.59
₹111679.41
100
₹2233.58
₹223357.90
500
₹9031.09
₹4515542.81
1000
₹9031.09
₹9031085.62
Product Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
SiCFET (Silicon Carbide)
1200 V
115A (Tc)
15V
22.3mOhm @ 75A, 15V
3.6V @ 23mA
211 nC @ 15 V
+15V, -4V
6085 pF @ 1000 V
556W (Tc)
-40°C ~ 175°C (TJ)
Through Hole
TO-247-4L
TO-247-4
