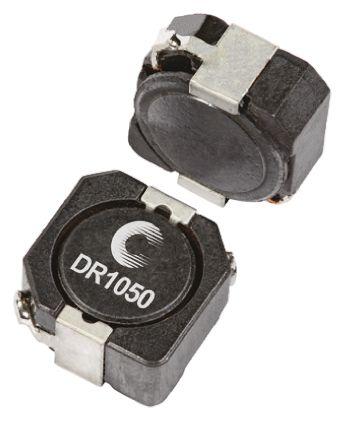

DR1050-150-R
Manufacturer
Eaton
Description
Ind Power Shielded Wirewound 15uH 30% 100KHz Ferrite 3.8A T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Composition
Core Material
Current Rating
DC Current
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Lead Free
Length
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Number of Pins
Packaging
Radiation Hardening
REACH SVHC
Resistance
RMS Current (Irms)
RoHS
Saturation Current
Schedule B
Self Resonant Frequency
Shielding
Termination
Test Frequency
Tolerance
Weight
Width
Description
1050
Wirewound
Ferrite
3.8 A
3.8 A
32.5 mΩ
10.3 mm
5 mm
5.0038 mm
15 µH
30 %
Lead Free
10.4902 mm
3.7 A
125 °C
Not
-40 °C
Surface Mount
2
Cut Tape
No
Unknown
26 mΩ
3.8 A
Compliant
3.7 A
8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|85
1 MHz
Shielded
SMD/SMT
100 kHz
30 %
5.000005 g
10.287 mm
₹97.45
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹80.70
₹807.03
25
₹80.68
₹2017.12
50
₹80.68
₹4034.24
100
₹66.31
₹6631.01
500
₹60.74
₹30369.76
1000
₹55.29
₹55292.54
