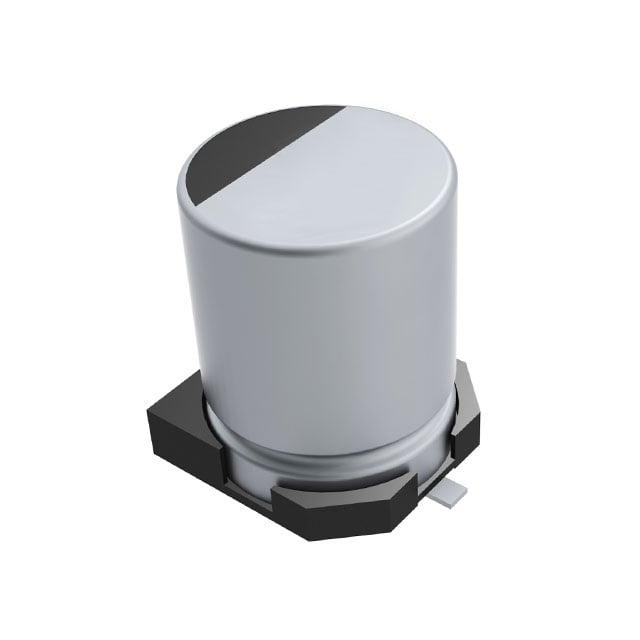

EDH107M100A9RAA
Manufacturer
KEMET
Description
100 F 100 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105C
Datasheet
DownloadProduct Attributes
Type
Capacitance
Tolerance
Voltage - Rated
Lifetime @ Temp.
Max Operating Temperature
Polarization
Applications
Ripple Current (AC)
Ripple Current @ High Frequency
Size / Dimension
Height - Seated (Max)
Surface Mount Land Size
Mounting Type
Case/Package
Description
100 µF
±20%
100 V
2000 Hrs @ 105°C
-40°C ~ 105°C
Polar
General Purpose
300 mA @ 120 Hz
375 mA @ 10 kHz
0.492" Dia (12.50mm)
0.551" (14.00mm)
0.504" L x 0.504" W (12.80mm x 12.80mm)
Surface Mount
Radial, Can - SMD
₹241.14
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹241.14
₹241.14
10
₹161.59
₹1615.89
25
₹161.63
₹4040.64
50
₹126.07
₹6303.44
100
₹99.57
₹9956.90
500
₹95.46
₹47730.16
1000
₹88.38
₹88376.84
Product Attributes
Type
Capacitance
Tolerance
Voltage - Rated
Lifetime @ Temp.
Max Operating Temperature
Polarization
Applications
Ripple Current (AC)
Ripple Current @ High Frequency
Size / Dimension
Height - Seated (Max)
Surface Mount Land Size
Mounting Type
Case/Package
Description
100 µF
±20%
100 V
2000 Hrs @ 105°C
-40°C ~ 105°C
Polar
General Purpose
300 mA @ 120 Hz
375 mA @ 10 kHz
0.492" Dia (12.50mm)
0.551" (14.00mm)
0.504" L x 0.504" W (12.80mm x 12.80mm)
Surface Mount
Radial, Can - SMD
