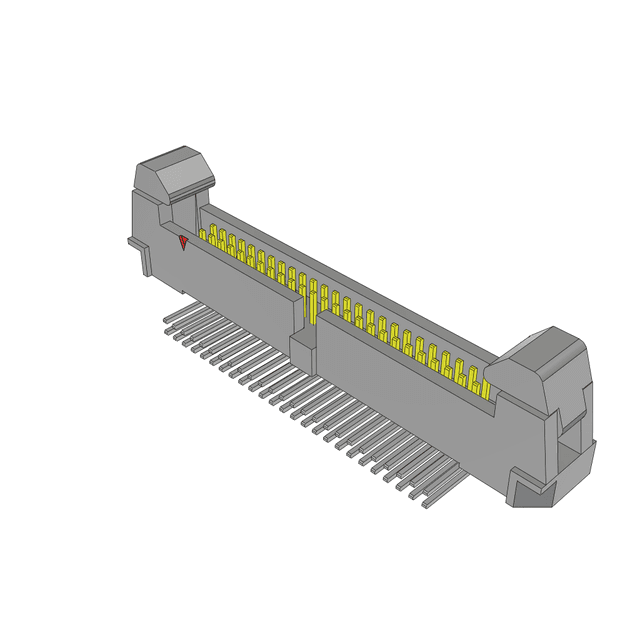

EHF-125-01-L-D-RA
Manufacturer
Samtec
Description
Pin Header, Wire-to-Board, 1.27 mm, 2 Rows, 50 Contacts, Through Hole Right Angle, EHF Series
Datasheet
DownloadProduct Attributes
Type
Color
Connector Type
Contact Material
Contact Mating Length
Contact Plating
Current Rating
Depth
Fastening Type
Gender
Housing Color
Lead Free
Lead Pitch
Length
Lifecycle Status
Manufacturer Lifecycle Status
Material
Max Current Rating
Max Operating Temperature
Min Operating Temperature
Mount
Number of Contacts
Number of Positions
Number of Rows
Orientation
Pitch
Radiation Hardening
REACH SVHC
RoHS
Row Spacing
Termination
Description
Black
Male Pin
Bronze
3.048 mm
Gold
1.75 A
13.84 mm
Latch
Male
Black
Lead Free
1.27 mm
46.23 mm
Production (Last Updated: 3 years ago)
PRODUCTION (Last Updated: 3 years ago)
Liquid Crystal Polymer
1.75 A
125 °C
-55 °C
Through Hole
50
50
2
Right Angle
1.27 mm
No
No
Compliant
1.27 mm
Solder
₹1019.31
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹1019.31
₹1019.31
10
₹865.86
₹8658.65
25
₹865.88
₹21647.07
50
₹865.90
₹43295.06
100
₹735.93
₹73593.45
