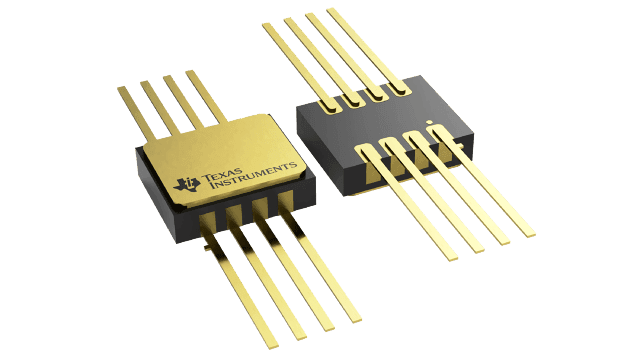

INA333SHKJ
Manufacturer
Texas Instruments
Description
High Temperature Low Power, Precision Instrumentation Amplifier 8-CFP -55 to 210
Product Attributes
Type
-3db Bandwidth
Ambient Temperature Range High
Bandwidth
Common Mode Rejection Ratio
Height
Input Bias Current
Input Offset Voltage (Vos)
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Dual Supply Voltage
Max Junction Temperature (Tj)
Max Operating Temperature
Max Supply Voltage
Min Dual Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Nominal Supply Current
Number of Channels
Number of Circuits
Number of Elements
Number of Pins
Operating Supply Current
Output Current per Channel
Power Supply Rejection Ratio (PSRR)
Quiescent Current
Radiation Hardening
Resistance
Response Time
RoHS
Slew Rate
Thickness
Voltage Gain
Width
Description
150 kHz
210 °C
150 kHz
80 dB
1.65 mm
70 pA
10 µV
Contains Lead
6.9 mm
Production (Last Updated: 3 days ago)
ACTIVE (Last Updated: 3 days ago)
2.75 V
210 °C
210 °C
5.5 V
900 mV
-55 °C
1.8 V
Surface Mount
50 µA
1
1
3
8
50 µA
-55 mA
112.04 dB
198 µA
No
100 GΩ
500 µs
Compliant
0.16 V/µs
1.65 mm
60 dB
5.65 mm
₹11631.48
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹11631.48
₹11631.48
10
₹11264.20
₹112641.99
25
₹11264.16
₹281604.06
