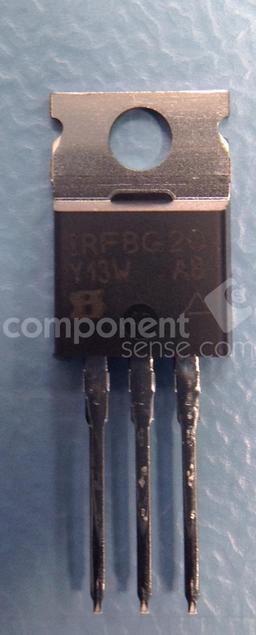

IRFBG20PBF
Manufacturer
Vishay
Description
Single N-Channel 1000 V 11 Ohms Flange Mount Power Mosfet - TO-220AB
Datasheet
DownloadProduct Attributes
Type
Case/Package
Continuous Drain Current (ID)
Current Rating
Drain to Source Breakdown Voltage
Drain to Source Resistance
Drain to Source Voltage (Vdss)
Element Configuration
Fall Time
Gate to Source Voltage (Vgs)
Height
Input Capacitance
Lead Free
Length
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Nominal Vgs
Number of Channels
Number of Elements
Number of Pins
Packaging
Power Dissipation
Radiation Hardening
Rds On Max
REACH SVHC
Resistance
Rise Time
RoHS
Schedule B
Threshold Voltage
Turn-Off Delay Time
Turn-On Delay Time
Voltage Rating (DC)
Weight
Width
Description
TO-220AB
1.4 A
1.4 A
1 kV
11 Ω
1 kV
Single
31 ns
20 V
19.89 mm
500 pF
Lead Free
10.41 mm
150 °C
150 °C
54 W
-55 °C
Through Hole
4 V
1
1
3
Bulk
54 W
No
11 Ω
Unknown
11 Ω
17 ns
Compliant
8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080
4 V
58 ns
9.4 ns
1 kV
6.000006 g
4.7 mm
₹161.72
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹161.72
₹161.72
10
₹96.95
₹969.49
25
₹96.95
₹2423.73
50
₹96.95
₹4847.47
100
₹93.66
₹9366.49
500
₹91.21
₹45606.75
1000
₹89.39
₹89392.80
