LC1D25U7
Manufacturer
Schneider Electric
Description

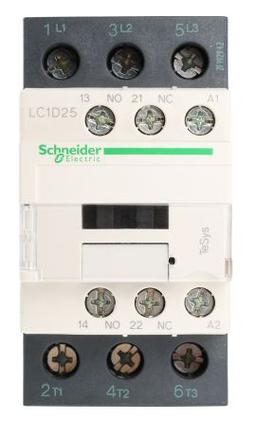

Power contactor, 3 pole, 25 A, 400 V, 3 Form A (N/O), coil 240 VAC, screw connection, LC1D25U7
Datasheet
DownloadProduct Attributes
Type
Approvals
Coil Voltage (AC)
Contact Current Rating
Depth
Length
Max Operating Temperature
Min Operating Temperature
Mount
Number of Poles
Operating Supply Voltage
Power Rating
REACH SVHC
RoHS
Termination
Throw Configuration
Type
Voltage Rating (AC)
Voltage Rating (DC)
Width
Description
CCC, CSA, EN, IEC, UL
240 V
25 A
90 mm
85 mm
60 °C
-5 °C
DIN Rail
3
600 V
11 kW
Unknown
Compliant
Screw
3P
General Purpose
690 V
300 V
45 mm
₹13623.69
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹13623.69
₹13623.69
