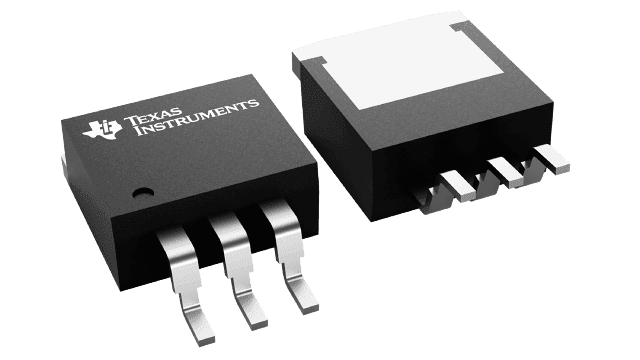

LM7805SX/NOPB
Manufacturer
Texas Instruments
Description
1.5-A, 30-V, linear voltage regulator 3-DDPAK/TO-263 0 to 125
Datasheet
DownloadProduct Attributes
Type
Accuracy
Ambient Temperature Range High
Case/Package
Dropout Voltage
Height
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Junction Temperature (Tj)
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Nominal Supply Current
Number of Channels
Number of Outputs
Number of Pins
Output Current
Output Voltage
Quiescent Current
RoHS
Schedule B
Thickness
Width
Description
3 %
125 °C
TO-263
2 V
4.83 mm
Contains Lead
10.18 mm
Production (Last Updated: 1 week ago)
ACTIVE (Last Updated: 1 week ago)
150 °C
125 °C
30 V
0 °C
7.5 V
8 mA
1
1
3
1.5 A
5 V
8 mA
Compliant
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
4.44 mm
8.41 mm
₹219.60
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹219.60
₹219.60
10
₹161.68
₹1616.81
25
₹147.17
₹3679.22
50
₹147.15
₹7357.52
100
₹130.61
₹13060.71
500
₹118.85
₹59422.85
1000
₹115.05
₹115045.70
