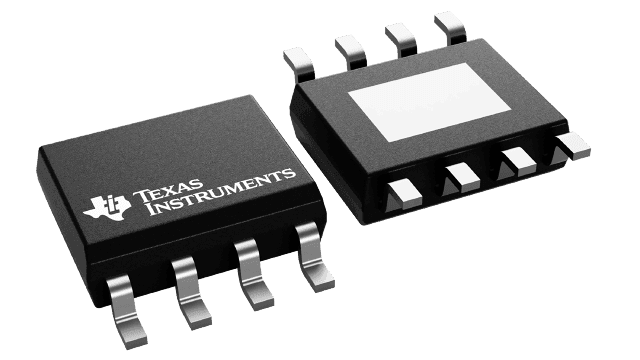

LMR23610ADDAR
Manufacturer
Texas Instruments
Description
Switching Regulator, Current-mode, 1A, 2200kHz Switching Freq-Max, PDSO8
Datasheet
DownloadProduct Attributes
Type
Height
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Duty Cycle
Max Junction Temperature (Tj)
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Nominal Supply Current
Number of Channels
Number of Outputs
Number of Pins
Output Current
Quiescent Current
RoHS
Schedule B
Switching Frequency
Thickness
Topology
Width
Description
1.7 mm
Lead Free
4.89 mm
Production (Last Updated: 4 days ago)
ACTIVE (Last Updated: 4 days ago)
97 %
125 °C
125 °C
36 V
-40 °C
4 V
75 µA
1
1
8
1 A
75 µA
Compliant
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
400 kHz
1.48 mm
Buck
3.9 mm
₹426.39
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹426.39
₹426.39
10
₹320.98
₹3209.82
25
₹294.63
₹7365.75
50
₹294.65
₹14732.42
100
₹265.61
₹26560.62
500
₹243.41
₹121704.15
1000
₹236.54
₹236537.57
