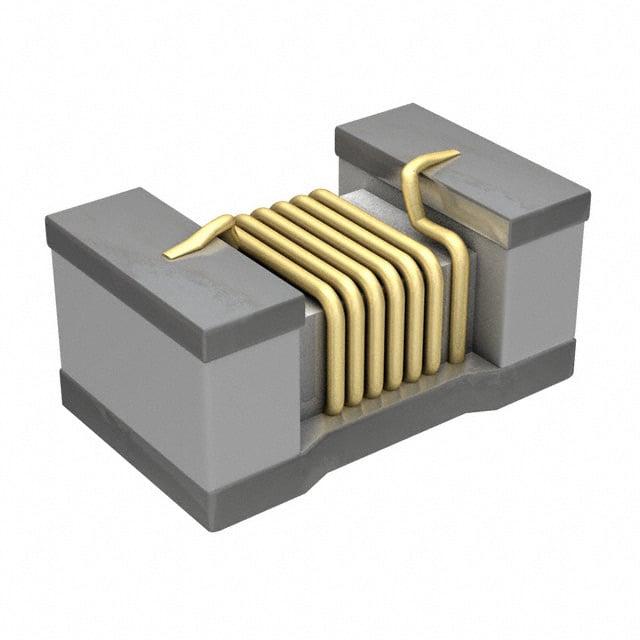

LQW15AN12NG00D
Manufacturer
Murata
Description
MURATA - LQW15AN12NG00D - Wirewound Inductor, 12 nH, 0.14 ohm, 5.5 GHz, 500 mA, 0402 [1005 Metric], LQW15AN_00 Series
Datasheet
DownloadProduct Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Shielding
DC Resistance (DCR)
Q @ Freq
Frequency - Self Resonant
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Size / Dimension
Height - Seated (Max)
Description
Wirewound
Non-Magnetic
12 nH
±2%
500 mA
Unshielded
140mOhm Max
30 @ 250MHz
5.5GHz
-55°C ~ 125°C
100 MHz
Surface Mount
0402 (1005 Metric)
0.039" L x 0.024" W (1.00mm x 0.60mm)
0.024" (0.60mm)
₹13.18
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹11.03
₹110.32
25
₹11.03
₹275.81
50
₹11.03
₹551.60
100
₹9.11
₹911.11
500
₹8.67
₹4335.47
1000
₹7.55
₹7550.38
Product Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Shielding
DC Resistance (DCR)
Q @ Freq
Frequency - Self Resonant
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Size / Dimension
Height - Seated (Max)
Description
Wirewound
Non-Magnetic
12 nH
±2%
500 mA
Unshielded
140mOhm Max
30 @ 250MHz
5.5GHz
-55°C ~ 125°C
100 MHz
Surface Mount
0402 (1005 Metric)
0.039" L x 0.024" W (1.00mm x 0.60mm)
0.024" (0.60mm)
