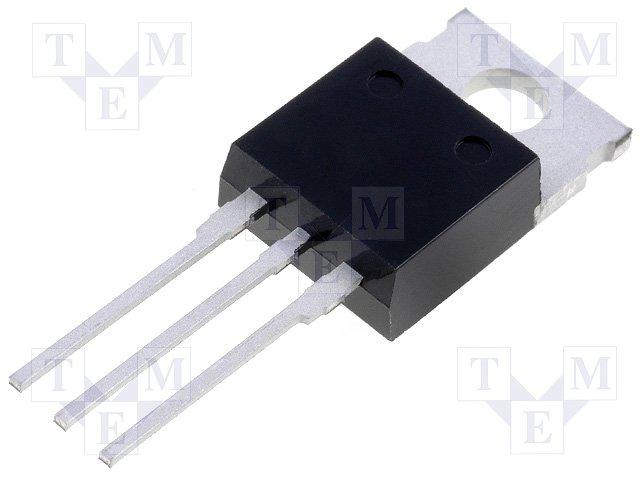

MC7805BTG
Manufacturer
onsemi
Description
Linear Voltage Regulator, 1 A, 5 to 24 V, Positive Vout: 5.0 V; TJ = -40C to +125C
Datasheet
DownloadProduct Attributes
Type
Accuracy
Case/Package
Contact Plating
Current Rating
Dropout Voltage
Halogen Free
Height
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Input Voltage
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Current
Min Input Voltage
Min Operating Temperature
Min Output Voltage
Mount
Nominal Output Voltage
Number of Channels
Number of Outputs
Number of Pins
Number of Regulators
Output Current
Output Type
Output Voltage
Output Voltage Accuracy
Polarity
Power Supply Rejection Ratio (PSRR)
Quiescent Current
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Weight
Width
Description
4 %
TO-220-3
Tin
1 A
2 V
Halogen Free
19.68 mm
Lead Free
10.28 mm
Production (Last Updated: 4 years ago)
ACTIVE (Last Updated: 4 years ago)
35 V
125 °C
125 °C
1 A
7 V
-40 °C
5 V
Through Hole
5 V
1
1
3
1
1 A
Fixed
5 V
4 %
Positive
68 dB
8 mA
No
No
Compliant
8542390000
4.535924 g
4.82 mm
₹71.83
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹51.24
₹512.40
25
₹51.28
₹1281.91
50
₹42.73
₹2136.53
100
₹40.06
₹4005.87
500
₹35.56
₹17778.45
1000
₹34.17
₹34167.01
