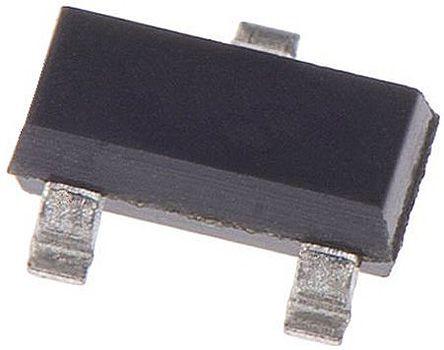

MMBTA92LT1G
Manufacturer
onsemi
Description
Single Bipolar Transistor, PNP, 300 V, 500 mA, 225 mW, SOT-23 (TO-236), 3 Pins, Surface Mount
Datasheet
DownloadProduct Attributes
Type
Case/Package
Collector Base Voltage (VCBO)
Collector Emitter Saturation Voltage
Collector Emitter Voltage (VCEO)
Contact Plating
Current Rating
Element Configuration
Emitter Base Voltage (VEBO)
Frequency
Gain Bandwidth Product
Height
hFE Min
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Breakdown Voltage
Max Collector Current
Max Frequency
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Number of Elements
Number of Pins
Packaging
Polarity
Power Dissipation
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Transition Frequency
Voltage Rating (DC)
Width
Description
SOT-23-3
300 V
-500 mV
300 V
Tin
-500 mA
Single
5 V
50 MHz
50 MHz
940 µm
25
Lead Free
2.9 mm
Production (Last Updated: 4 years ago)
ACTIVE (Last Updated: 4 years ago)
300 V
500 mA
50 MHz
150 °C
300 mW
-55 °C
1
3
Tape and Reel
PNP
300 mW
No
No
Compliant
8541210080, 8541210080|8541210080|8541210080|8541210080|8541210080
50 MHz
-300 V
1.3 mm
₹19.03
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹11.85
₹118.52
25
₹11.85
₹296.31
50
₹11.85
₹592.62
100
₹7.52
₹752.08
500
₹5.52
₹2760.80
1000
₹4.90
₹4899.82
