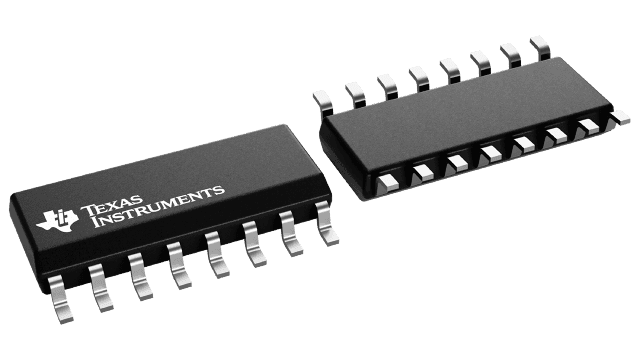

SN74AHC594N
Manufacturer
Texas Instruments
Description
Ahc/vhc/h/u/v Series 8-BIT Right Serial in Parallel Out Shift Register True Output PDIP16
Datasheet
DownloadProduct Attributes
Type
Case/Package
Direction
Frequency
Height
Lead Free
Length
Lifecycle Status
Logic Function
Manufacturer Lifecycle Status
Max Input Current
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Bits
Number of Bits per Element
Number of Circuits
Number of Elements
Number of Input Lines
Number of Output Lines
Number of Pins
Operating Supply Voltage
Propagation Delay
REACH SVHC
RoHS
Termination
Thickness
Turn-On Delay Time
Weight
Width
Description
PDIP
Unidirectional
115 MHz
5.08 mm
Lead Free
19.3 mm
Production (Last Updated: 4 days ago)
D-Type, Shift Register
ACTIVE (Last Updated: 4 days ago)
40 µA
125 °C
5.5 V
-40 °C
2 V
Through Hole
8
8
1
1
1
9
16
5 V
9.2 ns
No SVHC
Compliant
Through Hole
3.9 mm
14.4 ns
951.693491 mg
6.35 mm
₹60.85
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹42.82
₹428.22
25
₹38.32
₹958.00
50
₹38.32
₹1916.01
100
₹33.39
₹3338.84
500
₹44.64
₹22321.42
