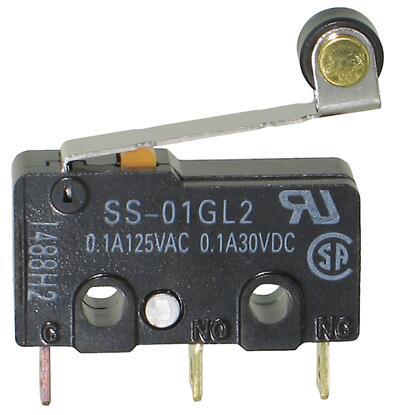

SS-01GL2
Manufacturer
Omron
Description
Switch Snap Action N.O./N.C. SPDT Hinge Roller Lever Solder 0.1A 30VDC 1.47N Thru-Hole
Datasheet
DownloadProduct Attributes
Type
Actuator Material
Ambient Temperature Range High
Approvals
Case/Package
Contact Current Rating
Contact Material
Contact Resistance
Current Rating
Depth
Differential Travel
Electrical Life
Height
Lead Free
Length
Life (Cycles)
Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Mechanical Life
Min Operating Temperature
Mount
Number of Poles
Number of Positions
Operating Force
Operating Position
Orientation
Overtravel
Radiation Hardening
Ratings
REACH SVHC
RoHS
Schedule B
Switch Function
Termination
Throw Configuration
Voltage Rating (AC)
Voltage Rating (DC)
Description
Polyacetal, Resin, Stainless Steel
85 °C
CSA, UL
100
100 mA
Gold
100 mΩ
100 mA
6.4 mm
787.4 µm
200 kcycles
6.8 mm
Lead Free
19.8 mm
200 kcycles
Production (Last Updated: 4 years ago)
100 mA
85 °C
125 V
30 V
30 Mcycles
-25 °C
Chassis Mount, Screw, Solder
1
2
490 mN
8.763 mm
Straight
1.1938 mm
No
IP40
Unknown
Compliant
8536509040
On-Mom
Solder
SPDT
125 V
30 V
₹441.94
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹441.94
₹441.94
10
₹357.67
₹3576.74
25
₹357.62
₹8940.47
50
₹350.98
₹17548.78
100
₹331.58
₹33157.77
500
₹290.54
₹145271.80
