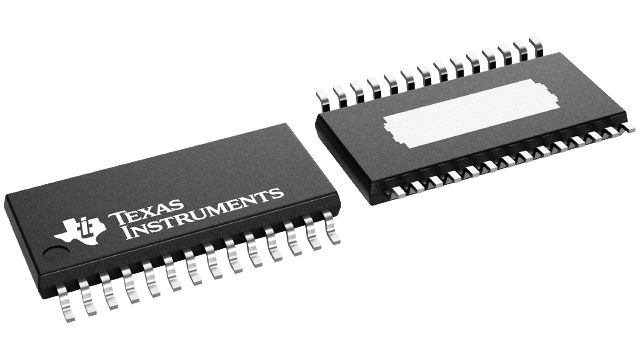

TLC5946PWP
Manufacturer
Texas Instruments
Description
16-channel, 12-bit PWM LED driver with 6-bit dot correction 28-HTSSOP -40 to 85
Datasheet
DownloadProduct Attributes
Type
Case/Package
Frequency
Height
High Level Output Current
Lead Free
Length
Lifecycle Status
Low Level Output Current
Manufacturer Lifecycle Status
Max Input Voltage
Max Operating Temperature
Max Output Current
Max Power Dissipation
Max Supply Current
Max Supply Voltage
Min Input Voltage
Min Operating Temperature
Min Supply Voltage
Nominal Supply Current
Number of Outputs
Number of Pins
Number of Segments
Output Current
Output Voltage
Power Dissipation
Radiation Hardening
REACH SVHC
RoHS
Switching Frequency
Thickness
Width
Description
HTSSOP EP
30 MHz
1.2 mm
-1 mA
Lead Free
9.7 mm
Production (Last Updated: 1 week ago)
5 mA
ACTIVE (Last Updated: 1 week ago)
5.5 V
85 °C
40 mA
3.958 W
45 mA
5.5 V
3 V
-40 °C
3 V
45 mA
16
28
16
40 mA
17 V
3.958 W
No
No
Compliant
30 MHz
1 mm
4.4 mm
₹409.00
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹409.00
₹409.00
10
₹287.49
₹2874.93
25
₹287.46
₹7186.41
50
₹243.90
₹12195.12
100
₹222.13
₹22212.54
