TPB11CGPC004
Manufacturer
TE Connectivity
Description

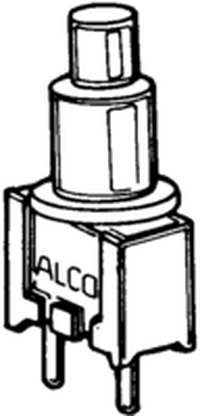

Pushbutton switch, 1 pole, black, unlit , 0.4 A/20 V, 1825097-1
Datasheet
DownloadProduct Attributes
Type
Actuator Length
Actuator Material
Contact Current Rating
Contact Plating
Contact Resistance
Current Rating
Depth
Electrical Life
Housing Material
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Operating Temperature
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Min Operating Temperature
Mount
Number of Positions
Operating Force
Packaging
Power Rating
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Switch Function
Termination
Throw Configuration
Type
Voltage Rating (AC)
Voltage Rating (DC)
Description
3.2766 mm
Thermoplastic
400 mA
Gold
20 mΩ
20 mA
5.99 mm
100 kcycles
Thermoplastic
Lead Free
8.13 mm
Production (Last Updated: 1 week ago)
ACTIVE (Last Updated: 1 week ago)
65 °C
20 V
20 V
-30 °C
Bushing, Through Hole
2
3.92 N
Bulk
400 mW
No
Unknown
Compliant
8536509030, 8536509030|8536509030, 8536509030|8536509030|8536509030, 8536509030|8536509030|8536509030|8536509030
Off-Mom
PC Pins, Solder
SPST
Switch
20 V
20 V
₹603.90
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹603.90
₹603.90
10
₹515.05
₹5150.53
25
₹515.04
₹12875.88
50
₹514.47
₹25723.40
100
₹462.76
₹46276.13
500
₹443.56
₹221782.27
1000
₹428.74
₹428735.15
