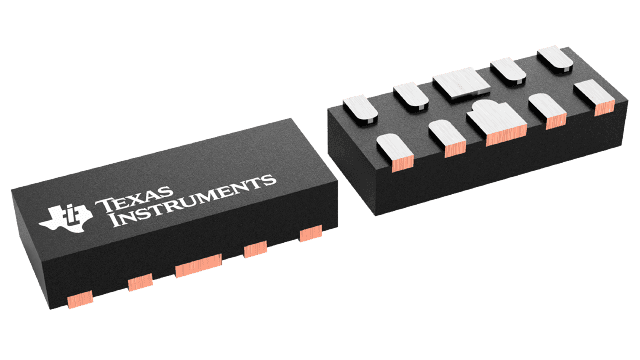

TPD4E02B04DQAR
Manufacturer
Texas Instruments
Description
TVS DIODE 3.6V 8.8V 10USON / 4-Channel ESD Protection Diode for USB Type-C and HDMI 2.0
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Breakdown Voltage
Capacitance
Clamping Voltage
Composition
Direction
Height
Interface
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Operating Temperature
Min Breakdown Voltage
Min Operating Temperature
Mount
Number of Bidirectional Channels
Number of Channels
Number of Pins
Operating Supply Voltage
Packaging
Peak Pulse Current
Peak Pulse Power
Power Line Protection
REACH SVHC
Reverse Standoff Voltage
RoHS
Schedule B
Thickness
Width
Description
125 °C
6.4 V
250 fF
8.8 V
Zener
Bidirectional
550 µm
HDMI, USB
Lead Free
2.5 mm
Production (Last Updated: 2 weeks ago)
ACTIVE (Last Updated: 2 weeks ago)
125 °C
5.5 V
-40 °C
Surface Mount
4
4
10
3.6 V
Cut Tape
2 A
17 W
No
No
3.6 V
Compliant
8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080
500 µm
1 mm
₹80.52
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹53.89
₹538.93
25
₹53.95
₹1348.71
50
₹53.95
₹2697.42
100
₹34.54
₹3454.13
500
₹25.88
₹12939.01
1000
₹24.90
₹24899.90
