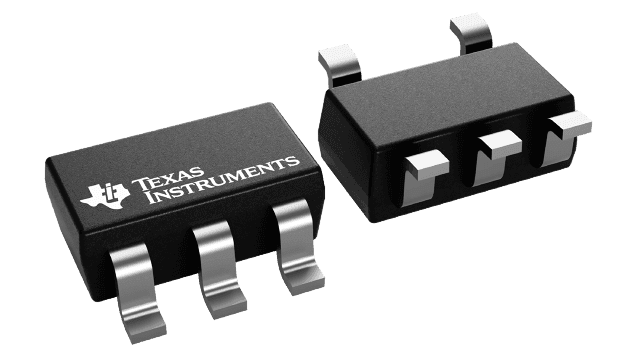

TPS70950DBVR
Manufacturer
Texas Instruments
Description
80dB@(10Hz), 52dB@(1kHz) 150mA Fixed 5V Positive 30V SOT-23-5 Linear Voltage Regulators (LDO) ROHS
Datasheet
DownloadProduct Attributes
Type
Accuracy
Case/Package
Dropout Voltage
Height
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Input Voltage
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Current
Max Supply Voltage
Min Current Limit
Min Input Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Nominal Output Voltage
Nominal Supply Current
Number of Outputs
Number of Pins
Number of Regulators
Output Current
Output Type
Output Voltage
Output Voltage Accuracy
Polarity
Power Supply Rejection Ratio (PSRR)
Quiescent Current
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Thickness
Width
Description
2 %
SOT-23
690 mV
1.45 mm
Lead Free
2.9 mm
Production (Last Updated: 2 days ago)
ACTIVE (Last Updated: 2 days ago)
30 V
125 °C
125 °C
150 mA
30 V
200 mA
2.7 V
-40 °C
2.7 V
Surface Mount
5 V
1 µA
1
5
1
150 mA
Fixed
5 V
1 %
Positive
80 dB
1 µA
No
No
Compliant
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
1.2 mm
1.6 mm
₹124.44
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹124.44
₹124.44
10
₹90.04
₹900.36
25
₹81.40
₹2034.96
50
₹81.40
₹4069.92
100
₹71.90
₹7190.07
500
₹64.63
₹32316.88
1000
₹59.67
₹59668.98
