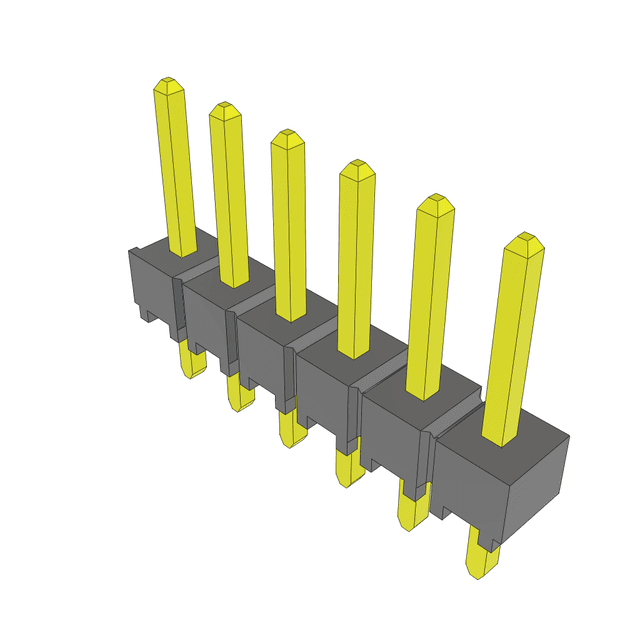

TSW-106-07-T-S
Manufacturer
Samtec
Description
Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Top Entry Thru-Hole Bag
Datasheet
DownloadProduct Attributes
Type
Color
Connector Type
Contact Material
Contact Mating Length
Contact Plating
Contact Resistance
Depth
Gender
Height
Housing Color
Housing Material
Lead Free
Lead Pitch
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Min Operating Temperature
Mount
Number of Contacts
Number of Positions
Number of Rows
Orientation
Pitch
Radiation Hardening
REACH SVHC
RoHS
Termination
Width
Description
Black
Male Pin
Brass, Bronze
5.842 mm
Tin
10 mΩ
2.54 mm
Male
10 mm
Black
Polyester
Lead Free
2.54 mm
15.24 mm
Production (Last Updated: 3 years ago)
PRODUCTION (Last Updated: 3 years ago)
7.6 A
105 °C
550 V
-55 °C
Through Hole
6
6
1
Vertical
2.54 mm
No
No
Compliant
Solder
2.54 mm
₹37.82
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹23.40
₹233.98
25
₹23.40
₹584.96
50
₹23.40
₹1169.91
100
₹22.92
₹2291.80
500
₹21.72
₹10858.68
1000
₹20.40
₹20396.71
