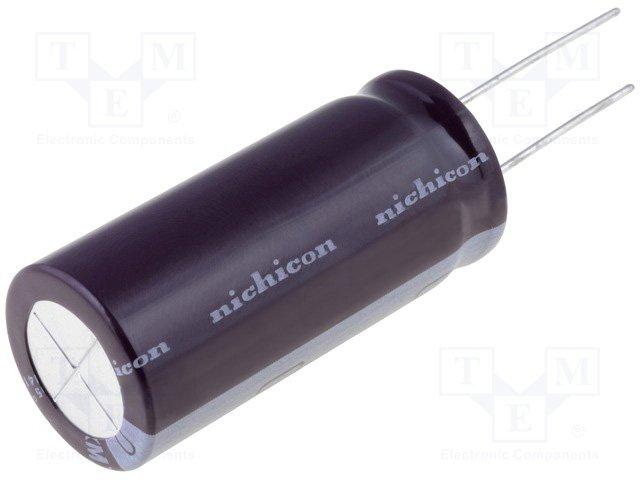

UPW1J471MHD3
Manufacturer
Nichicon
Description
Radial Can ALUMINUM ELECTROLYTIC CAPACITOR UPW 63V 470muF 20% 0.630Dia 16.00mm
Datasheet
DownloadProduct Attributes
Type
Capacitance
Case/Package
Contact Plating
Diameter
Dielectric Material
Dissipation Factor
ESR (Equivalent Series Resistance)
Height
Height - Seated (Max)
Impedance
Lead Diameter
Lead Free
Lead Pitch
Leakage Current
Length
Life (Hours)
Lifecycle Status
Max Operating Temperature
Min Operating Temperature
Mount
Packaging
Polarity
Radiation Hardening
Ripple Current
Ripple Current (AC)
RoHS
Schedule B
Termination
Tolerance
Voltage
Voltage Rating
Voltage Rating (DC)
Description
470 µF
Radial
Tin
16 mm
Aluminium
0.09 %
110 mΩ
20 mm
19.9898 mm
59 mΩ
800 µm
Lead Free
7.493 mm
888.3 µA
20 mm
8000 hours
Production (Last Updated: 5 years ago)
105 °C
-55 °C
PCB, Through Hole
Bulk
Polar
No
1.77 A
1.77 A
Compliant
8532220020, 8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|85
Radial
20 %
63 V
63 V
63 V
₹138.91
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹138.91
₹138.91
10
₹63.78
₹637.75
25
₹63.79
₹1594.85
50
₹63.81
₹3190.61
100
₹57.49
₹5748.94
500
₹57.49
₹28745.64
1000
₹54.61
₹54610.86
